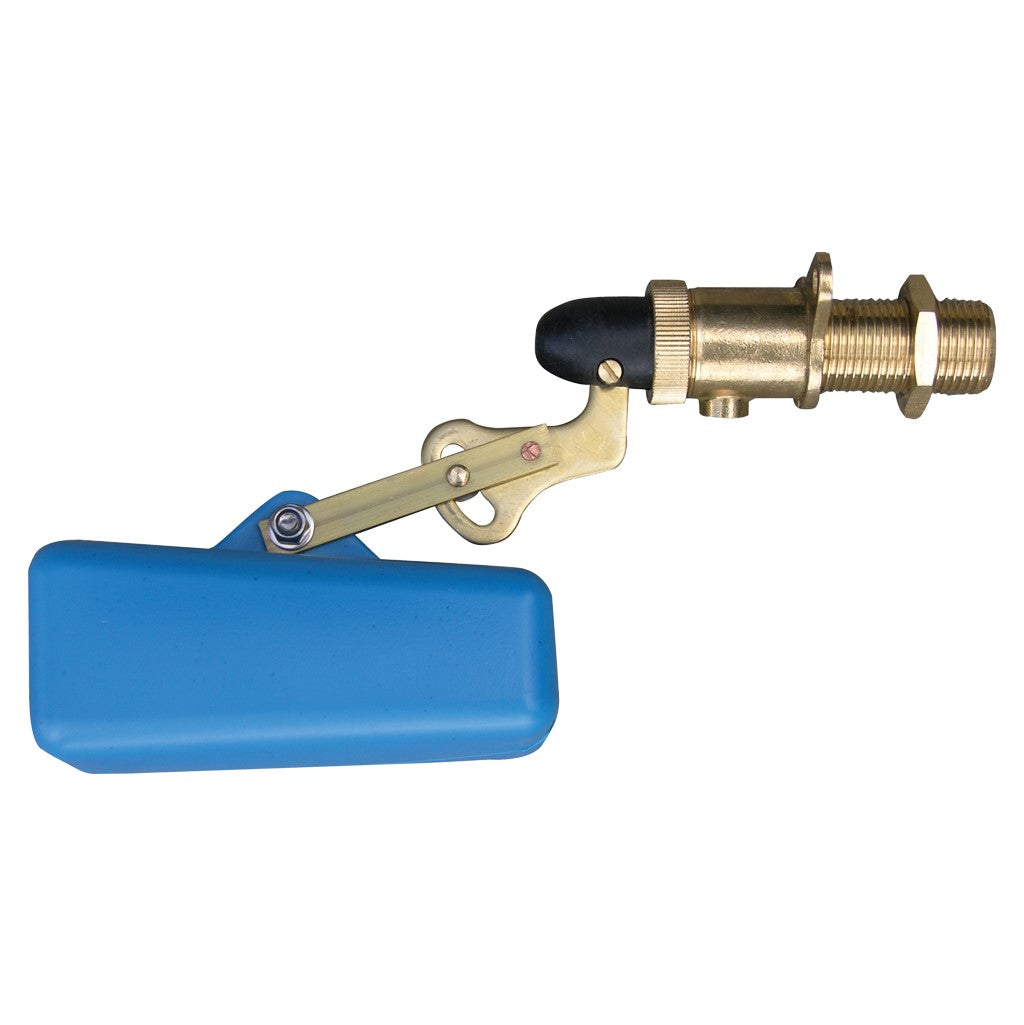

JFC 1/2 Float Valve for DBL4 - JBV1

The JBV1 (1/2" Brass Valve) is constructed from high-quality brass combined with a durable and tough plastic. It features a fully adjustable float at two points, with a small nut and bolt on the float assembly and a butterfly nut on the arm, allowing the user precise control over fill levels. This valve is designed for easy cleaning, disinfection, and quick removal or replacement. On the DBL4 model, a small nut and bolt secure the valve to the trough, ensuring it remains in place and unaffected by animal interaction. Capable of delivering up to 9L/min, this valve ensures that the drinking trough always provides fresh and clean water for animals.

To comply with UK water by-laws, the drink bowl must be connected to a supply from a breaker or header tank.

Maximum working pressure: 4 bar

Key Features:

• Fully adjustable fill level control.
• Capable of delivering 9L/min.
• Retaining nut and bolt prevent movement within the trough.
• Constructed from high-quality brass and durable plastic.
• Hard-wearing, frost-resistant, and built to last.
• Smooth finish reduces bacteria build-up.
• Designed to withstand extreme weather conditions for a long lifespan.
• Easy to remove and replace.
• Simple to clean and disinfect.

Specifications:

• Model Number: JBV1
• Master Product Code: Agri
• Item Category: Spare Parts
• Net Weight: 0.248 kg
